Products >> LED Spike Light >> Square Spike light

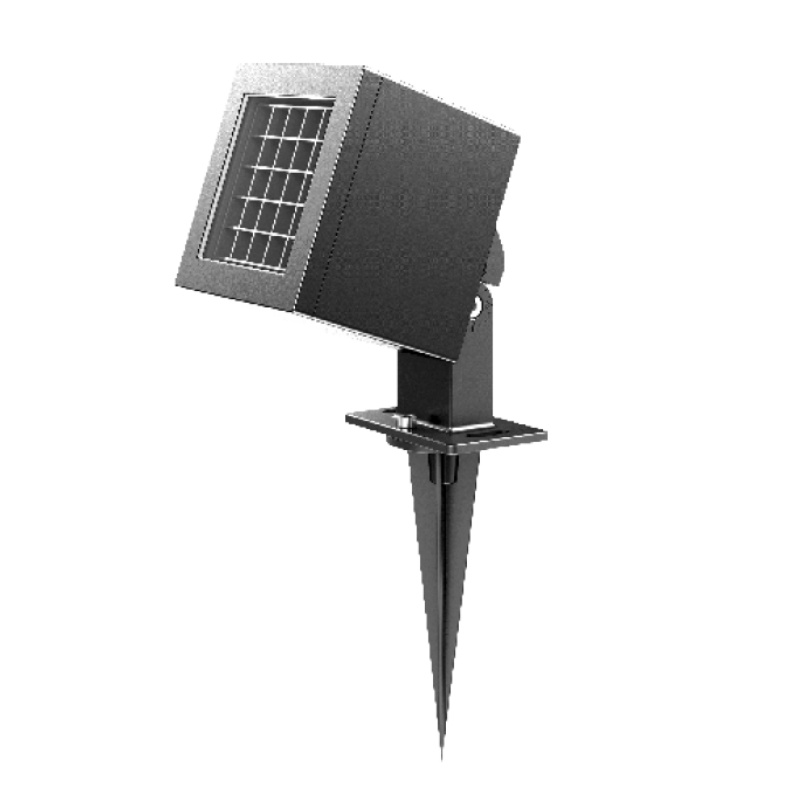

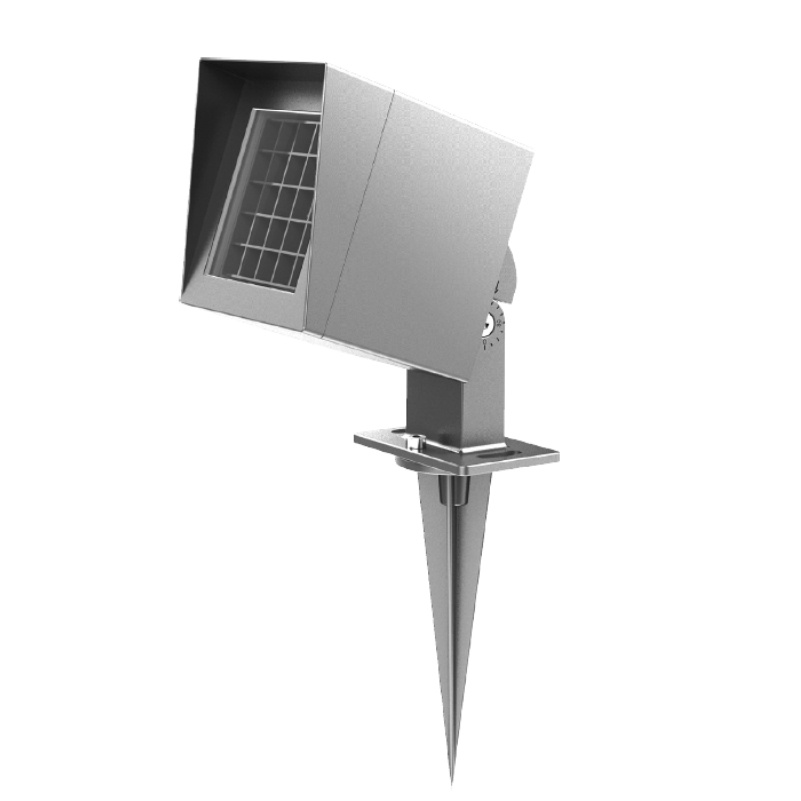

LED Spike Light--CN130L

Product No.：JR-CN130L
Light color:：RGB/Day white/ Warm white/ Yellow
Light sources:：High Power 1W/ 2W/5W
Beam angle:：8°,15°,30°,45°,60°,more available options
Work temperature:：-20ºC~50ºC
Storage temperature:：-40ºC~70ºC
Input voltage:：DC24V/AC24V/AC220V
Control mode:：DMX512
IP rating:：IP67
Life:：50000h
Shell color：：Light grey, more colors available
Online Inquiry

PRODUCT FEATURE:

.Made of aluminum with modern design
.All-toughened glass

.Patent of water proofing structure
.Low thermal resistance paths desian for heat dissipation
.Waterproof design with high thermal conductive silicone fully sealed
.Thermoelectric separation
.Outdoor lightening and ESD protection

FUNCTION PARAMETER:
Color: RGB/Day white/ Warm white/ Yellow
Light sources: High Power 1W/2W/3W/5W
Beam angle:3°、8°、15°、30°、45°、60°,more available options
Work temperature:-20℃~50℃
Storage temperature:-40℃~70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512

IP rating:lP67

Life: 50,000h

Dimensional Drawing:

Specification:

Model NO.	Shell	LED	Power	Voltage	Current	CCT
JML-CN130L-6M	Aluminum	6X1W	6W	AC220V	340mA	ONE
JML-CN130L-9M	Aluminum	9X1W	9W	AC220V	340mA	ONE
JML-CN130L-12M	Aluminum	6X2W	12W	AC220V	680mA	ONE
JML-CN130L-18M	Aluminum	9X2W	18W	AC220V	680mA	ONE
JML-CN130L-6R	Aluminum	6X1W	6W	DC24V	3X340mA	RGB
JML-CN130L-9R	Aluminum	9X1W	9W	DC24V	3X340mA	RGB
JML-CN130L-12R	Aluminum	6X2W	12W	DC24V	3x680mA	RGB
JML-CN130L-18R	Aluminum	9X2W	18W	DC24V	3x680mA	RGB

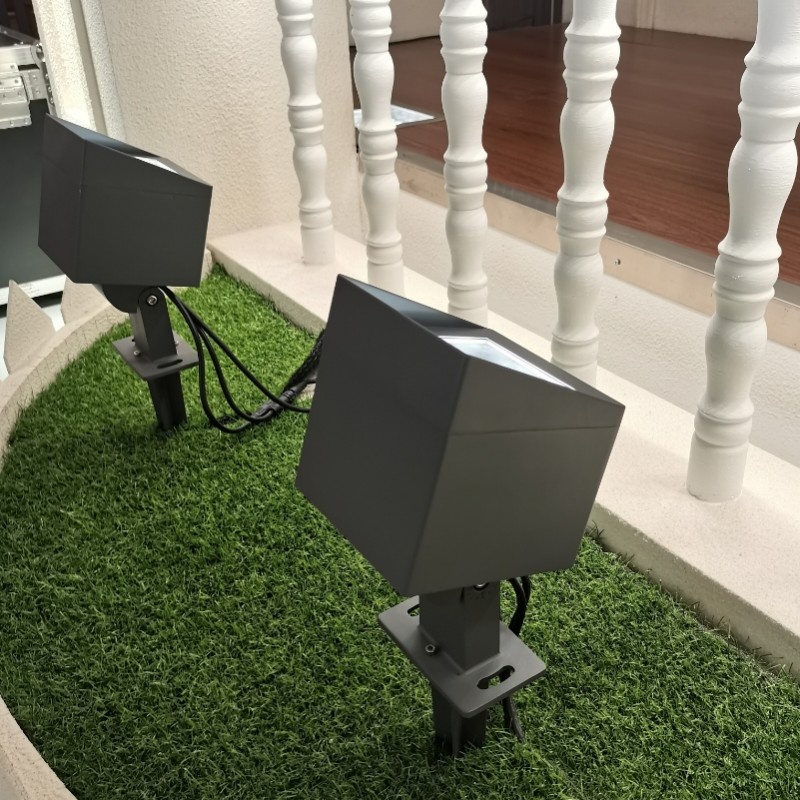

Case:
