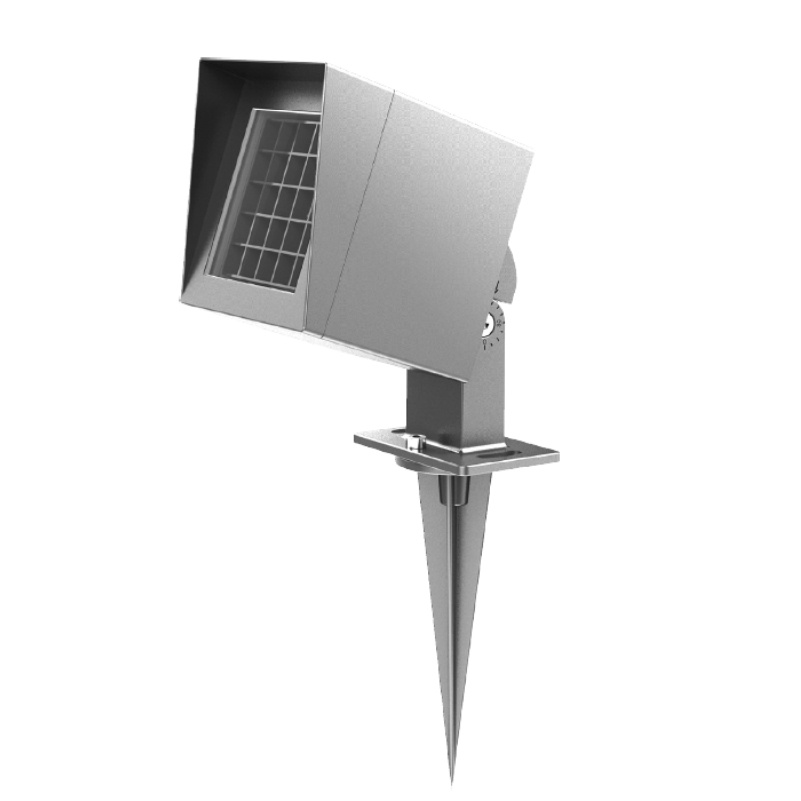

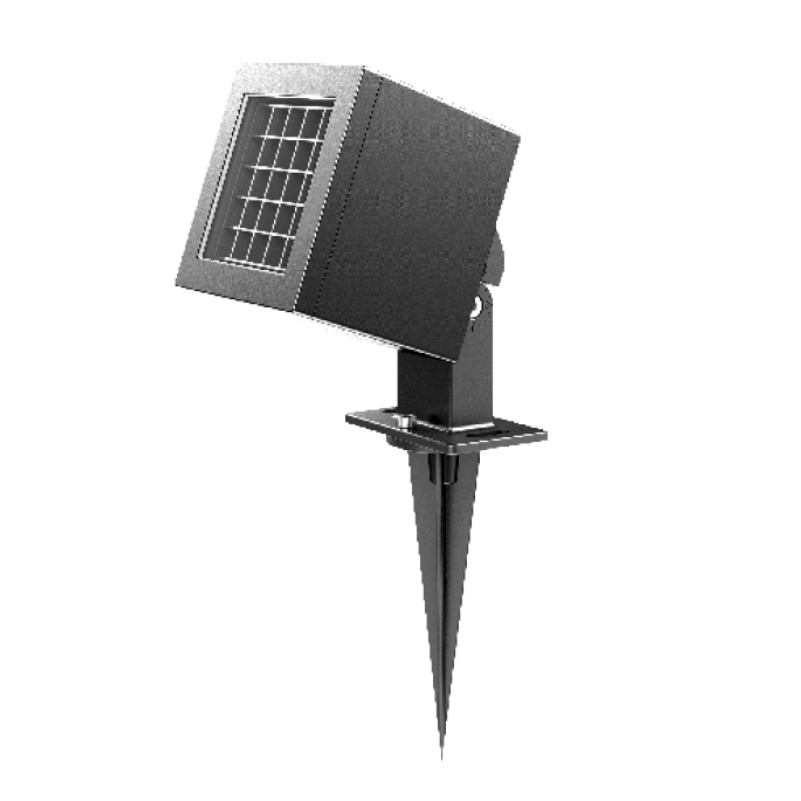

LED Spike Light--CN165L

Product No.：JR-CN165L
Light color:：RGB/Day white/ Warm white/ Yellow
Light sources:：High Power 1W/ 2W/5W
Beam angle:：8°,15°,30°,45°,60°,more available options
Work temperature:：-20ºC~50ºC
Storage temperature:：-40ºC~70ºC
Input voltage:：DC24V/AC24V/AC220V
Control mode:：DMX512
IP rating:：IP67
Life:：50000h
Shell color：：Light grey, more colors available
Online Inquiry

PRODUCT FEATURE:

.Made of aluminum with modern design
.All-toughened glass

.Patent of water proofing structure
.Low thermal resistance paths desian for heat dissipation
.Waterproof design with high thermal conductive silicone fully sealed
.Thermoelectric separation
.Outdoor lightening and ESD protection

FUNCTION PARAMETER:
Color: RGB/Day white/ Warm white/ Yellow
Light sources: High Power 1W/2W/3W/5W
Beam angle:3°、8°、15°、30°、45°、60°,more available options
Work temperature:-20℃~50℃
Storage temperature:-40℃~70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512

IP rating:lP67

Life: 50,000h

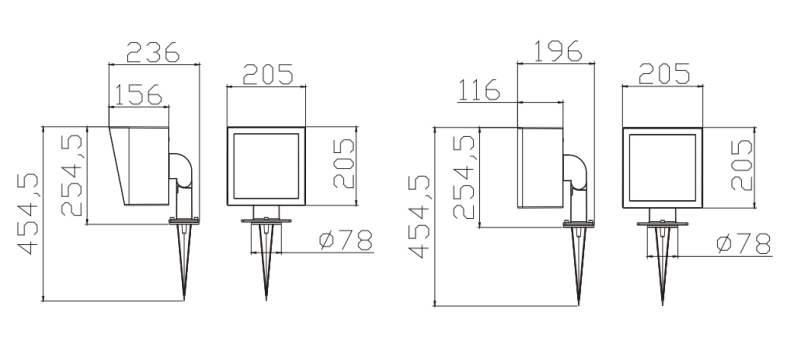

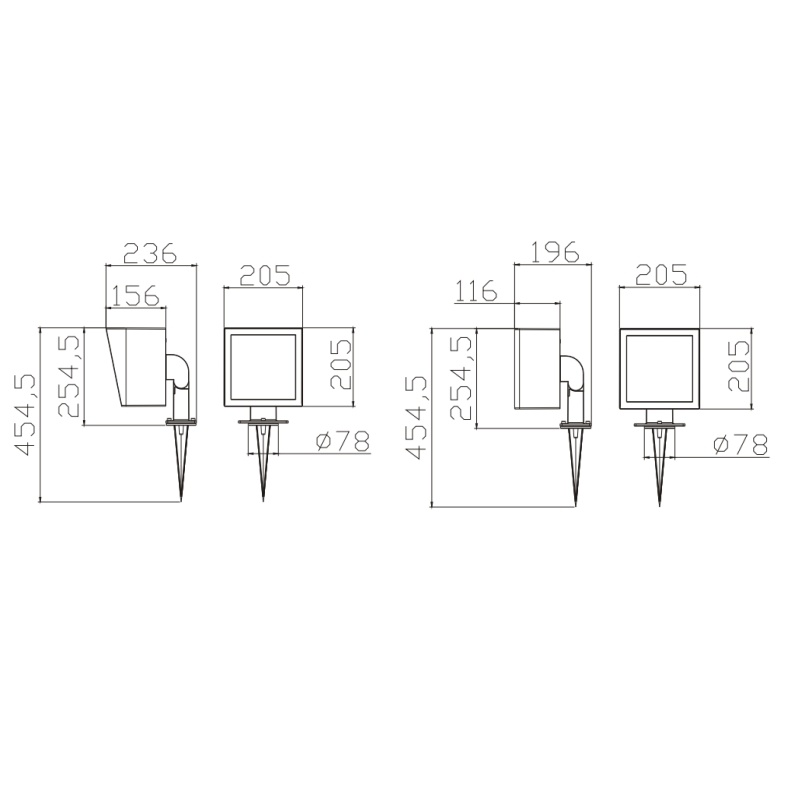

Dimensional Drawing:

Specification:

Model No.	Shell	Light source	Power	Input voltage	Current	CCT
JR-CN165L-12M	Die-cast aluminum	12X1W	12W	AC220V	340mA	monochrome
JR-CN165L-15M	Die-cast aluminum	15X1W	15W	AC220V	340mA	monochrome
JR-CN165L-18M	Die-cast aluminum	18X1W	18W	AC220V	340mA	monochrome
JR-CN165L-24M	Die-cast aluminum	12X2W	24W	AC220V	680mA	monochrome
JR-CN165L-30M	Die-cast aluminum	15X2W	30W	AC220V	680mA	monochrome
JR-CN165L-36M	Die-cast aluminum	18X2W	36W	AC220V	680mA	monochrome
JR-CN165L-12R	Die-cast aluminum	12X1W	12W	DC24V	3X340mA	RGB
JR-CN165L-15R	Die-cast aluminum	15X1W	15W	DC24V	3X340mA	RGB
JR-CN165L-18R	Die-cast aluminum	18X1W	18W	DC24V	3X340mA	RGB
JR-CN165L-24R	Die-cast aluminum	12X2W	24W	DC24V	3X680mA	RGB
JR-CN165L-30R	Die-cast aluminum	15X2W	30W	DC24V	3X680mA	RGB
JR-CN165L-36R	Die-cast aluminum	18X2W	36W	DC24V	3X680mA	RGB

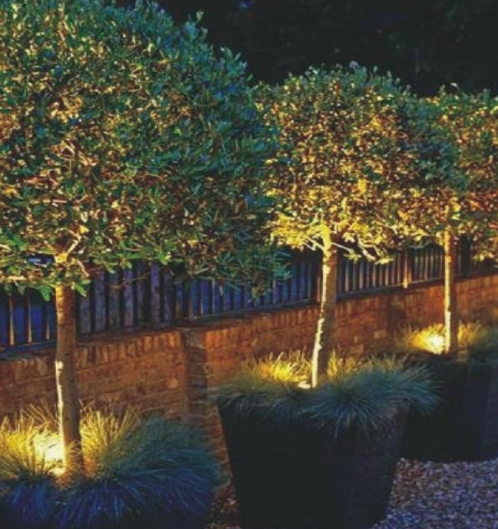

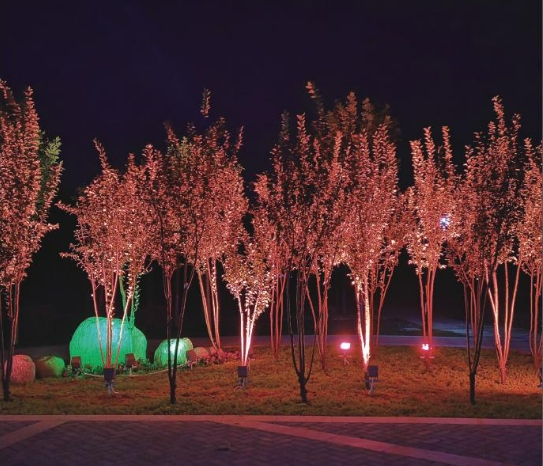

Case:
