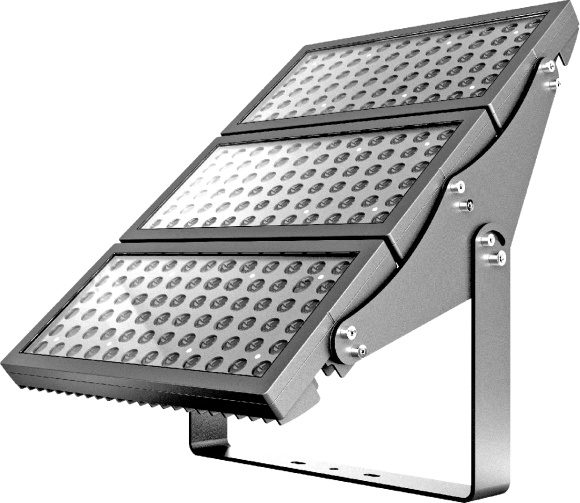

LED Flood light-T400CL
- Product No.：JML-T400CL
PRODUCT FEATURE:
.Combinatorial Design, Flexibility and Diversity
.Made of aluminum with modern design
.Patent structure design, waterproof treatment
.Low thermal resistance paths design for heat dissipation
.Professional optical design with high light-extraction efficiency (LEE) and uniformity of illumination
.Low heating power supply design with high energy efficiency and high power factor (PF) value
.Outdoor lightening protection
FUNCTION PARAMETER:
Color: RGB/RGBW/Day white/ Warm white/ Yellow
Light sources: High Power 1W/3W
Beam angle: ,8°,15°,30°,45°,60°,more available options
Work temperature: -20ºC~50ºC
Storage temperature: -40ºC~70ºC
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP rating: IP67
Life: 50,000h
.Combinatorial Design, Flexibility and Diversity
.Made of aluminum with modern design
.Patent structure design, waterproof treatment
.Low thermal resistance paths design for heat dissipation
.Professional optical design with high light-extraction efficiency (LEE) and uniformity of illumination
.Low heating power supply design with high energy efficiency and high power factor (PF) value
.Outdoor lightening protection
FUNCTION PARAMETER:
Color: RGB/RGBW/Day white/ Warm white/ Yellow
Light sources: High Power 1W/3W
Beam angle: ,8°,15°,30°,45°,60°,more available options
Work temperature: -20ºC~50ºC
Storage temperature: -40ºC~70ºC
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP rating: IP67
Life: 50,000h
Model No. |
Shell |
Light source |
Power |
Input voltage |
Output current |
CT |
| JML-T400CL-216M | Die-cast Aluminum | 216×1W | 216W | AC220V | 340mA | Monochrome |
| JML-T400CL-300M | Die-cast Aluminum | 150×2W | 300W | AC220V | 680mA | Monochrome |
JML-T400CL-360M |
Die-cast Aluminum | 180×2W | 360W | AC220V | 680mA | Monochrome |
| JML-T400CL-216R | Die-cast Aluminum | 216×1W | 216W | DC24V | 340mA | RGB |
| JML-T400CL-300R | Die-cast Aluminum | 150×2W | 300W | DC24V | 680mA | RGB |
| JML-T400CL-360R | Die-cast Aluminum | 180×2W | 360W | DC24V | 680mA | RGB |
